PCD&F
ACC Materials Celeritas HM001 Laminate
HM001 low-loss PCB material with near-zero coefficient of thermal expansion (CTE) supports high-speed signal layers in advanced electronics. Provides stable dielectric performance with low loss, enabling signal transmission at data rates to 224Gb/s and beyond. Maintains electrical consistency across temperature and frequency for high-frequency applications in AI and high-speed computing systems.
Advanced Chip and Circuit Materials
ACC Materials Celeritas HM50 Laminate
HM50 PCB laminate has negative coefficient of thermal expansion (CTE) of -8ppm/°C and supports large-format designs by offsetting copper expansion within stackups. Is said to reduce board warpage, package bow and solder fatigue in high-density assemblies. Enables improved thermomechanical stability in AI hardware and high-performance computing applications.
Advanced Chip and Circuit Materials
ACC Materials Celeritas SF1600 Laminate
SF1600 laminate and prepreg material supports high-speed digital designs by eliminating fiber weave skew. Enables differential signaling at 224Gb/s PAM4 and beyond with dielectric constant of 2.80 and dissipation factor of 0.0007, stable to 110GHz. Provides insertion loss of approximately 1.05dB/in at 56GHz on 7-mil differential pairs with HVLP4 copper. Supports standard FR-4 processing, including CO2 and UV laser drilling, with no fiber pull-out or residue. Delivers peel strength greater than 5pli and supports stacked microvia reliability through 500-cycle testing.
Advanced Chip and Circuit Materials
infinityPV Laboratory Roll-to-Roll Coater LR2RC
LR2RC roll-to-roll coating system supports thin-film processing using slot-die technology for electronics, energy and materials research. Handles up to 100m of foil with controlled web tension for consistent film deposition. Comes in multiple lengths and widths with modular configuration for glovebox and controlled environments. Supports applications including PCB coatings, printed electronics, batteries, fuel cells, OLEDs, sensors and medical films. Includes touchscreen, manual and PC-based control with forward-reverse and stop-and-go processing.
InfinityPV
Kyocera AVX FFLK Series DC Filtering Capacitors
FFLK series DC filtering capacitors support high-power applications in electric vehicles and industrial systems. Use metallized polypropylene film to enable high current handling, low ESR and long operating life in cylindrical form factors. Rated from 900–3,800VDC with capacitance values from 25–3,020µF. Incorporate controlled self-healing dielectric technology to prevent failure and maintain performance under electrical stress.
Kyocera AVX
Kyocera AVX BME NP0 MLCCs
BME NP0 multilayer ceramic capacitors support aerospace and defense electronics with expanded case sizes from 0402 to 1210 and capacitance values from 68–47,000pF. Rated from 4–100V and meet Mil Spec “M” and “T” reliability levels with Defense Logistics Agency qualification. Enable reduced component count and improved layout efficiency for filtering, tuning, decoupling, timing and blocking functions. Feature Flexiterm terminations and come in standard packaging formats.
Kyocera AVX

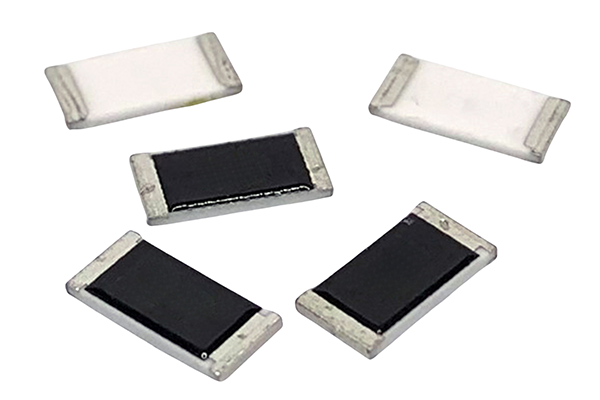

Stackpole RMAN Aluminum Nitride Chip Resistors
RMAN chip resistors have aluminum nitride substrates to support high thermal conductivity and stable electrical performance in power-dense applications. Enable improved heat dissipation and lower operating temperatures compared to alumina-based designs. Support applications including IGBT, SiC and GaN modules, power supplies, EV systems and RF circuits. Provide power ratings up to 2.4W in 1206 and 3.4W in 2512 packages with controlled hotspot temperatures.
Stackpole Electronics
Tomachie Automated PCB Schematic Review Service with Generative DfT
Web-based schematic review service evaluates Altium and KiCad designs prior to layout, generating a 0–100 layout-readiness score with ranked improvement actions. Supports Design for Testability (DfT) by predicting structural test coverage across AOI, AXI, flying probe, in-circuit test and boundary scan, while inserting test points directly into modified native design files. Runs more than 1,000 automated checks including impedance continuity, interface validation, library completeness, footprint compliance and power distribution. Outputs exportable reports for cross-functional review and provides centralized visibility into design quality and readiness. Designed to reduce downstream rework and cycle time by identifying issues at the schematic stage. Available as a web-based service with free access tiers and planned premium features.
Tomachie
End of article content
CA
Athena FabOrchestrator MES
FabOrchestrator agentic AI platform integrates with manufacturing execution systems to automate reporting, support, modelling and code generation in semiconductor and electronics factories. Applies large language model capabilities to MES environments, enabling natural language queries, support ticket handling and system configuration. Includes tools for data analysis, automated troubleshooting, system modelling and back-end code generation to improve use of factory data and reduce engineering workload.
Athena Technology Solutions
CalcuQuote / Banyan.eco Compliance Agent
Compliance agent automates regulatory data collection, validation and reporting for electronics manufacturing services workflows. Captures RoHS, REACH, conflict minerals, TSCA and Prop 65 data, validates supplier inputs and generates configurable reports. Retrieves missing information through automated supplier communication and monitors regulatory updates and supplier status changes to flag impacts on bills of materials. Supports ongoing compliance management across global supply chains.
CalcuQuote
Banyan.eco
Controlar PicAI Probe Inspection System
PicAI AI-driven probe inspection system automates ICT fixture verification using high-resolution imaging, synchronized lighting and adaptive AI. Analyzes probe marks to verify contact accuracy and detect misalignment, insufficient contact and probe wear. Supports high-density and fine-pitch designs with approximately 7µm resolution and enables single- and dual-sided inspection. Generates inspection reports with probe position data and visual records for traceability and process control. Comes in automated, benchtop and service configurations.
Controlar
Count On Tools Custom Yamaha I-Pulse Nozzle
Custom SMT nozzle supports placement of terminal-style connector components on Yamaha I-Pulse platforms. Features angled 4.66mm×10mm vacuum design to improve alignment and handling of challenging geometries, including terminal components.
Count On Tools
Göpel Scanflex II with CAN-FD/LIN Interface Module
Scanflex II boundary scan platform module enables functional testing of automotive serial bus systems including CAN-FD and LIN. Bus Access Cable module integrates with Scanflex Multi Port Bus I/O Module 9305 to provide direct interface access and synchronized testing across multiple channels. Supports vector generation and control sequence distribution through the Scanflex controller. Platform uses multi-core processors and FPGA architecture with up to eight parallel test access ports operating to 100MHz.
Göpel Electronic
Hanwha Semitec Decan S1 Plus, S2 Plus Chip Mounters
Decan S1Plus and S2 Plus chip mounters support high-speed SMT assembly with placement rates up to 95,000cph. Reduce board recognition time by approximately 30% and use vision-based alignment and calibration to improve placement accuracy and reduce component loss. Support a wide range of components and PCB weights up to 4.5kg. Designed for integration with automated material handling and smart factory systems.
Hanwha Semitec
infinityPV Slot-Die Coater
Slot-Die Coater supports thin-film deposition on rigid and flexible substrates for research applications. Integrates vacuum chuck, syringe pump and heating for controlled coating and drying. Enables film thickness control from nanometer to micrometer scale and supports slot-die, bar, knife and flexo coating methods. Comes in multiple sizes and configurable for roll-to-roll processing.
InfinityPV
Seika Machinery
Master Bond EP6STC-80 Epoxy Adhesive
EP6STC-80 silver-filled epoxy supports bonding, sealing and coating applications requiring thermal and electrical conductivity. Provides thermal conductivity of 13–14W/(m·K) and volume resistivity below 0.001ohm-cm. Operates from -60° to 150°C and cures at 80°C. Meets NASA low outgassing requirements and bonds to metals, ceramics, composites and plastics. Formulated as thixotropic paste for manual and automated dispensing.
Master Bond
ViE VisionXpert Smart Camera XC Series AOI
VisionXpert Smart Camera XC series inspection system provides automated optical inspection using deep learning and AI auto-tuning. Supports inline integration for defect detection across manufacturing lines and enables rapid setup without complex configuration. Designed for consistent inspection performance across varying applications.
ViE Technologies
